Big Tex 8.5 x 25 Deckover Equipment Trailer – Mega Ramps
- GVWR
- 23,900 lb
- Empty weight
- 5,600 lb
- Payload
- 18,300 lb
- Size
- 8.5' × 25'
- Axles
- Tandem
- Hitch
- Bumper pull
Overview

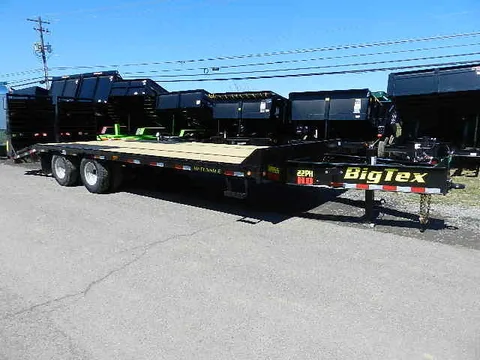

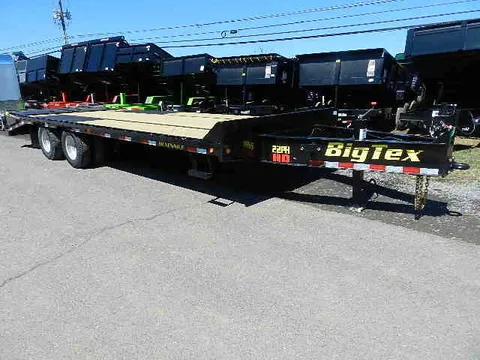

This Big Tex equipment trailer, 8.5 x 25, is designed for heavy loads where deck strength and ramp access matter more than enclosure. It carries a 23,900 lb GVWR with an empty weight of 5,600 lb, leaving 18,300 lb of payload for your load. It is a tandem-axle trailer. Rear access is a mega ramps. Color as listed: black. Confirm machine weight against payload and that your tow vehicle is rated for the combined weight.
Technical specifications
Identity
| Manufacturer | Big Tex |
|---|---|
| Model | 22PH-20BK+5MR |
| Condition | New |
Dimensions & capacity
| Size (W × L) | 8.5 ft × 25 ft |
|---|---|
| GVWR | 23,900 lb |
| Empty weight | 5,600 lb |
| Payload | 18,300 lb |

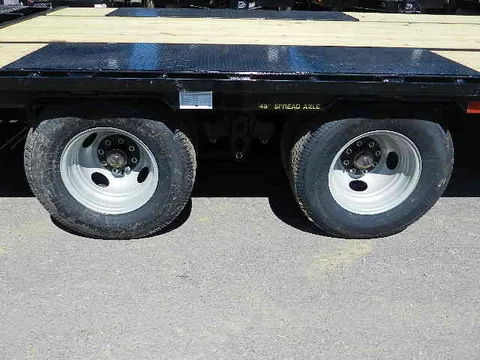

| Axles | Tandem (2) |
Running gear & coupling

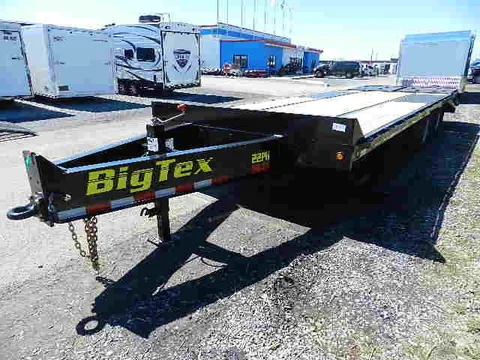

| Hitch | Bumper Pull |
|---|
Loading & access

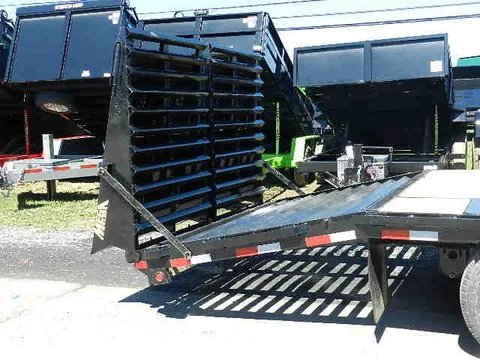

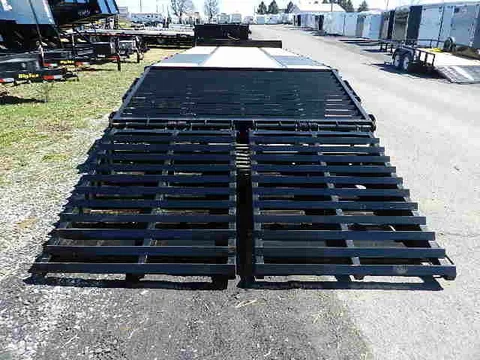

| Rear access | Mega Ramps |
|---|---|
| Side door | None |
Construction & finish
| Color | black |
|---|
Some specifications for this unit are not yet recorded (year). We list only what we can verify — ask us and we will check the unit.
Dimensions & capacity, explained
Maximum total weight of trailer plus load, set by the manufacturer.
The trailer alone, as stated by the manufacturer.
GVWR minus empty weight — what you can load.
Trailer capacity is separate from your tow vehicle's rating. Check the vehicle's door-jamb label and owner's manual for its towing and payload limits.
